Network Cards Modem

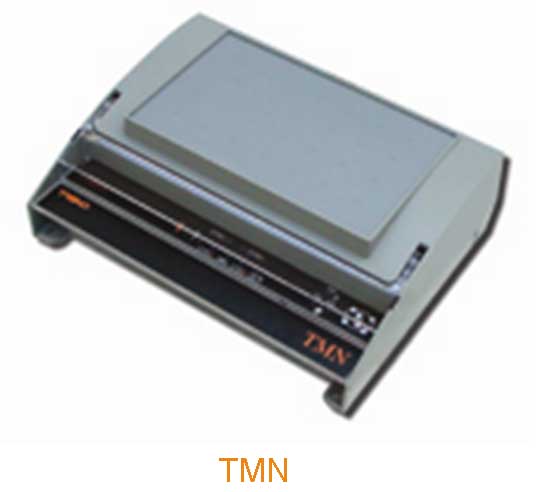

The TMN allows either networked or stand-alone IQ System devices to access the Public Switched Telephone Network (PSTN) via an integral or external modem, or to access the Integrated Services Digital Network (ISDN) via a terminal adaptor. The TMNG uses wireless communication via a GSM service provider enabling connections to sites without landlines and direct SMS messaging (text messages) to mobile phones. The TMN can communicate either to single or multiple devices over the IQ system current loop Lan. It also supports text messaging and communications to radiopagers via the PSTN and is supplied either boxed, or as a board which can be fitted in other IQ system devices (e.g. IQ controllers). A boxed battery-backed version is available (230 Vac only). There are high speed integral modem, GSM modem, and external modem/terminal adaptor versions.

Additional description

Enables communication between IQ System devices over PSTN, ISDN, or GSM.

•	TMNG enables wireless communication and direct SMS messaging to mobile phones
•	Memory retains telephone numbers and settings on power fail without battery.
•	Can be used on IQ system current loop Lans and internetwork or direct connected to software tool or controller.
•	Battery-backed option (NBOXB/TMN..) allows continued operation on power fail.
•	TMNH high speed integral modem has international approvals.
•	TMNE external modem allows higher baud rates.
•	Fast data rate reduces transmission times.

TMNH Cards

Model

Serial communication

Power source

Comments

Type

high speed integral modem

Trend Lan / Modem

24V

TMNH/.../

high speed integral modem

Trend Lan / Modem

230V

NBOX IP30

NBOX/TMNH/UK/230

high speed integral modem

Trend Lan / Modem

24V

NBOX IP30

NBOX/TMNH/UK/24

high speed integral modem

Trend Lan / Modem

230V battery backup

NBOXB IP30

NBOXB/TMNH/UK/230

TMNE Cards

Model

Serial communication

Power source

Comments

Type

external modem

Trend Lan / -

24V

TMNE

external modem

Trend Lan / -

230V

NBOX IP30

NBOX/TMNE/230

external modem

Trend Lan / -

24V

NBOX IP30

NBOX/TMNE/24

external modem

Trend Lan / -

230V battery backup

NBOXB IP30

NBOXB/TMNE/UK/230

TMNG Cards

Model

Serial communication

Power source

Comments

Type

GSM modem

Trend Lan / GSM

24V

TMNG/EUR

GSM modem

Trend Lan / GSM

230V

NBOX IP30

NBOX/TMNG/EUR/230

GSM modem

Trend Lan / GSM

24V

NBOX IP30

NBOX/TMNG/EUR/24

GSM modem

Trend Lan / GSM

230V battery backup

NBOXB IP30

NBOXB/TMNG/EUR/230

Accessories

Description

Additional Product Type

Steel enclosure for the Trend IQ22x and NBOX products

ENCLS/MBOX/IQ22x
